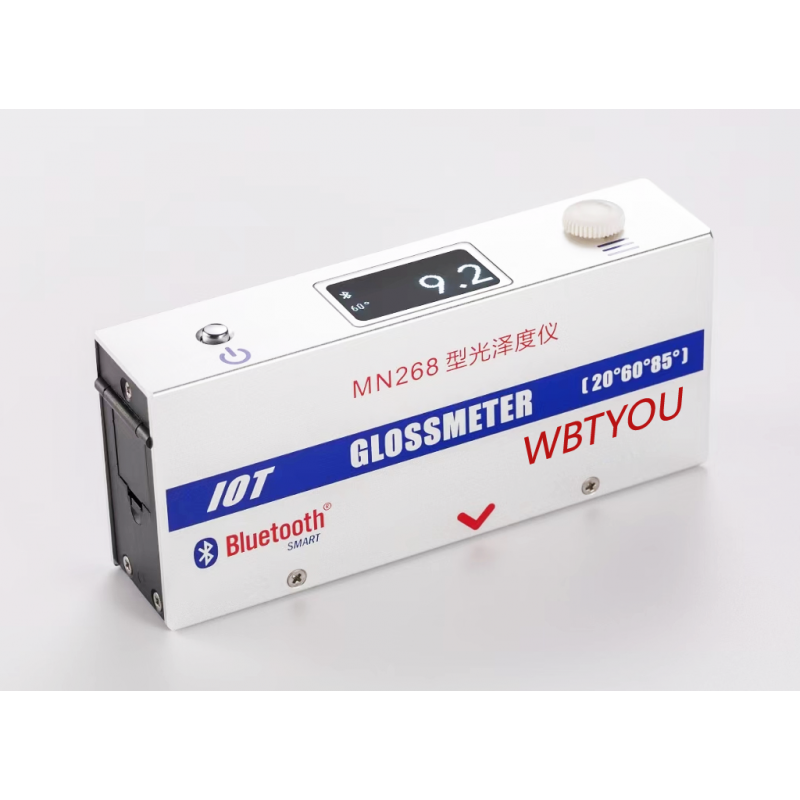

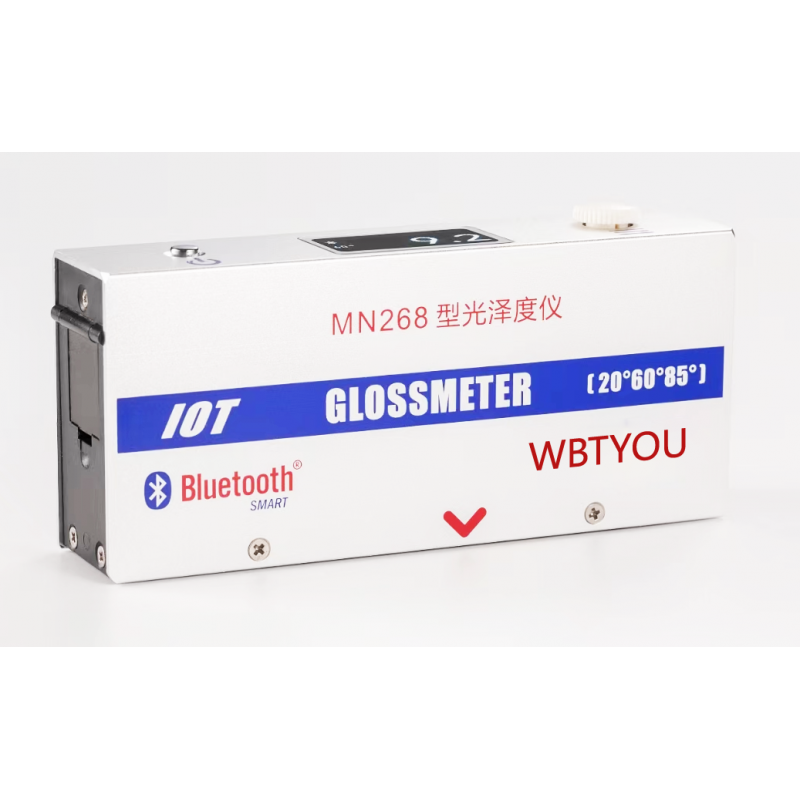

Gloss meter MN268

Glossmeter Operation Manual (Tri-geometry)

1.General information:

The serial of  glossmeters are designed and manufactured according to international standard ISO2813, ASTMD 523, DIN67530.

2.Applications:

a)Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.

b)Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.

c)Measurement of printing ink and paper on Printing and Casing industry.

d)Hard drawn aluminum alloys

3.Features:

a)Small and light, real easy to be carried and used.

b)One 1.5V alkaline Battery can be used for almost 60 hours and 10000 readings.

c)Long-term stable light source needs no replacing for ever.

d)Quartz crystal standard board, no excursion.

4.Technical data:

a)Measure range: 20°0~2000Gu , 60°0~1000Gu,  85°0~160Gu

b)Stability: less than ±0.4Gu/30min

c)Readout error: less than ±1.5Gu

d)Power supply: one 1.5V AA alkaline battery or one rechargeable battery

e)Measurement units are equipped with standard geometries of 20°60°or 85°.

Facular dimension 20°:10×10mm  60°：10×20mm  85°：7×24mm

f)Measure oar dimension: 11×54mm

g)Environment temperature: 0℃～40℃ Relative humidity: less then 85%

h)Dimension: 142mm×32mm×64mm

Dimension of standard board: 67mm×46mm×13mm

i)Weight: 320g

5.Operation instruction:

a)Power On：Pressing the operate button starts measurements or performs functions that are displayed. Geometry Selection：The corresponding led will light when press geometry selection button.

b)Calibration：Open the standard board box, measure the apparatus the mouth to put on the standard board of the black glass standard board. The under part of the instrument ▽ aims at the standard board box ▽. Turning the Calibrate knob on the right, make reading of display screen accord with value of angle at the standard board.

c)Regulation：Put the apparatus on another standard board box of white chinaware board and work on the board. The value that the display screen shows should not be greater than the difference of white pottery board at this moment 1.2Gu.

d)Measurement：Put the gloss meter into the object, then the reading that display screen shows gloss value under this angle.

e)Power Off：Auto Power off in 3 -5minitues.

6.Safety instructions:

a)Should prevent the strong light from penetrating directly while using, otherwise influence the accuracy of measuring.

b)Two standard boards that the instrument wears should keep clean , make sure not to touch the surface with the finger, if the surface has spots, will cause the instrumental error to strengthen and reading is inaccurate, can polish with the lens paper or the absolute alcohol.

c)Because this instrument stability is extremely high, the instrument needn't be often the school definitely, after proposing using for 2 hours in succession, a standard once again.

d)Please note that the capacity of the batteries is significantly lower ,when the light on the top of the display is red, you should be changed the batteries.

e)Among the course of Calibration, if the wheel can not be achieve the result of the standard board. The reason is that optics lens of instrument pollute seriously, you can dip in with lens paper a little absolute alcohol polish scene at this moment.

7.After Service:

One year guarantee.If users have any question on technology. Please contact our company in time.

8.Standard Scheme:

a)Glossmeter

b)Standard board box

c)Pack skin sets of one, outside pack of one

d)Instrument operation instruction

e)Inspection Reportl

Glossmeter Operation Manual (Tri-geometry)

1.General information:

The serial of  glossmeters are designed and manufactured according to international standard ISO2813, ASTMD 523, DIN67530.

2.Applications:

a)Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.

b)Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.

c)Measurement of printing ink and paper on Printing and Casing industry.

d)Hard drawn aluminum alloys

3.Features:

a)Small and light, real easy to be carried and used.

b)One 1.5V alkaline Battery can be used for almost 60 hours and 10000 readings.

c)Long-term stable light source needs no replacing for ever.

d)Quartz crystal standard board, no excursion.

4.Technical data:

a)Measure range: 20°0~2000Gu , 60°0~1000Gu,  85°0~160Gu

b)Stability: less than ±0.4Gu/30min

c)Readout error: less than ±1.5Gu

d)Power supply: one 1.5V AA alkaline battery or one rechargeable battery

e)Measurement units are equipped with standard geometries of 20°60°or 85°.

Facular dimension 20°:10×10mm  60°：10×20mm  85°：7×24mm

f)Measure oar dimension: 11×54mm

g)Environment temperature: 0℃～40℃ Relative humidity: less then 85%

h)Dimension: 142mm×32mm×64mm

Dimension of standard board: 67mm×46mm×13mm

i)Weight: 320g

5.Operation instruction:

a)Power On：Pressing the operate button starts measurements or performs functions that are displayed. Geometry Selection：The corresponding led will light when press geometry selection button.

b)Calibration：Open the standard board box, measure the apparatus the mouth to put on the standard board of the black glass standard board. The under part of the instrument ▽ aims at the standard board box ▽. Turning the Calibrate knob on the right, make reading of display screen accord with value of angle at the standard board.

c)Regulation：Put the apparatus on another standard board box of white chinaware board and work on the board. The value that the display screen shows should not be greater than the difference of white pottery board at this moment 1.2Gu.

d)Measurement：Put the gloss meter into the object, then the reading that display screen shows gloss value under this angle.

e)Power Off：Auto Power off in 3 -5minitues.

6.Safety instructions:

a)Should prevent the strong light from penetrating directly while using, otherwise influence the accuracy of measuring.

b)Two standard boards that the instrument wears should keep clean , make sure not to touch the surface with the finger, if the surface has spots, will cause the instrumental error to strengthen and reading is inaccurate, can polish with the lens paper or the absolute alcohol.

c)Because this instrument stability is extremely high, the instrument needn't be often the school definitely, after proposing using for 2 hours in succession, a standard once again.

d)Please note that the capacity of the batteries is significantly lower ,when the light on the top of the display is red, you should be changed the batteries.

e)Among the course of Calibration, if the wheel can not be achieve the result of the standard board. The reason is that optics lens of instrument pollute seriously, you can dip in with lens paper a little absolute alcohol polish scene at this moment.

7.After Service:

One year guarantee.If users have any question on technology. Please contact our company in time.

8.Standard Scheme:

a)Glossmeter

b)Standard board box

c)Pack skin sets of one, outside pack of one

d)Instrument operation instruction

e)Inspection Reportl
